Description

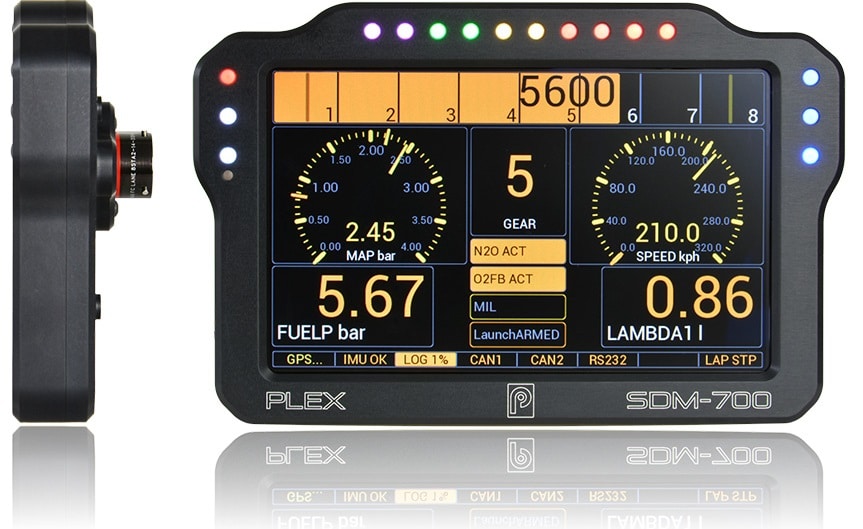

SDM-700® is our new 7” Pro-level Dash Display & Central Logger that is suitable for the most demanding of usage cases. Weighting less than 800g, it comes in a high quality , IP67 sealed, CNC aluminium enclosure and features an ultra-vivid, high-brightness anti-reflective TFT display. Combines best-in-class display functionality and UI with full spectrum datalogging and performance measurements. The SDM700 is very easy and quick to configure via our Device Manager SW.

KEY FEATURES
7” High-Brighness TFT Display
Uncompromised quality with 1000cd daylight view 800×480 display. ARC type broadband anti-reflective coating. Easily viewable in all light & weather conditions.
Built-in 50Hz GPS Module
Up to 50Hz internal GPS module with ultra-fast start-up time (1-3 sec) enables accurate predictive lap-timing with section break down and raw data logging.
Ultra High Speed Sim. Sampling Analog Inputs
8x 16bit bipolar analog inputs with up to 200kSPS per input for advanced functions like combustion and vibration analysis
Smart Alarms / Warnings
22 pre-loaded Smart Alarms require that you only input the trigger value. User defined alarms and alarm history (last 200) also available.
IP67 Environment Protection
Fully sealed enclosure effectively protects device against dust and water
High Volume & Speed Datalogging
Log up to 500 data channels at 1000Hz
QuickGlance™ UI
Proprietary UI design ensures optimal viewability and reduced driver distraction by optimising smart colour coding and contrast for the driver’s peripheral vision.
Up to 1024 Data Channels
Display and log up to 1024 different data channels, status/error flags from external sensors, connected devices and internal calculated values
Up to 4 Fully Configurable CAN BUS Ports
Programmable CAN BUS ports for msg receive & transmit let you configure the display to communicate with any CAN Bus device
Up to 32 Math Channels
Create up to 32 user-defined math channels allow custom parameters to be calculated in real-time
High-speed USB Port
Ultra fast data log memory download and easy device configuration from the PC
Serial Connectivity
2x RS232 ports, 1x LIN Bus port
Automatic Page Changing
Hands-free display page changing based on user-defined conditions such as engine status and/or load to help you keep your attention focused.
Built-in 100Hz IMU Module
Accurate internal Inertia Measurement Unit provides acceleration and absolute orientation data which can be used for vehicle dynamics analysis
Up to 48 Display Pages
Add up to 48 different display pages and choose among different predefined page layouts or create your own
Up to 2GB Built-in Memory
Ultra-fast built-in memory allows extreme logging rates.

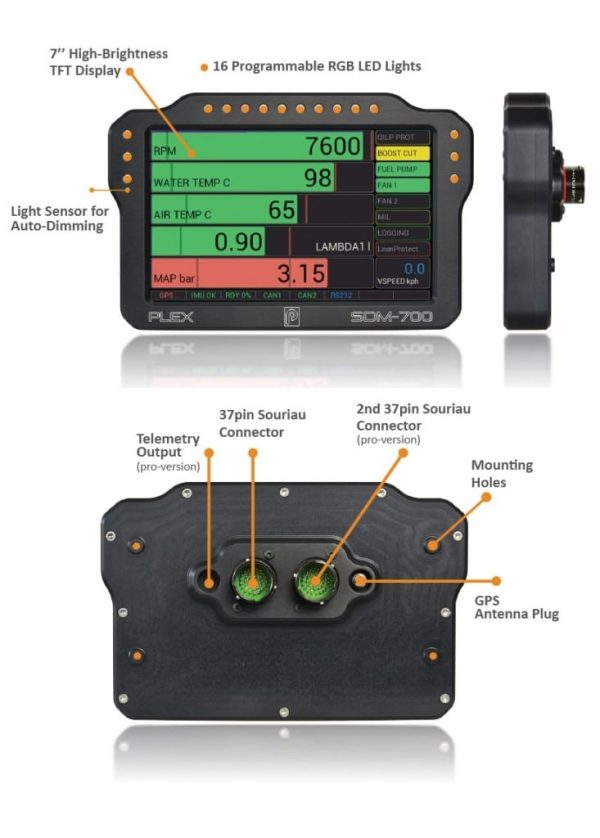

Two 37pin Souriau Connectors
8 multi-purpose inputs (ana, dig, freq), 4x switch inputs, 2x K-type thermocouple inputs, 8x high-speed and precision ana inputs, 2 engine position VR/hall inputs, 4x bipolar speed inputs, 4x LS aux outputs, multiple fixed & adjustable sensor power supplies
